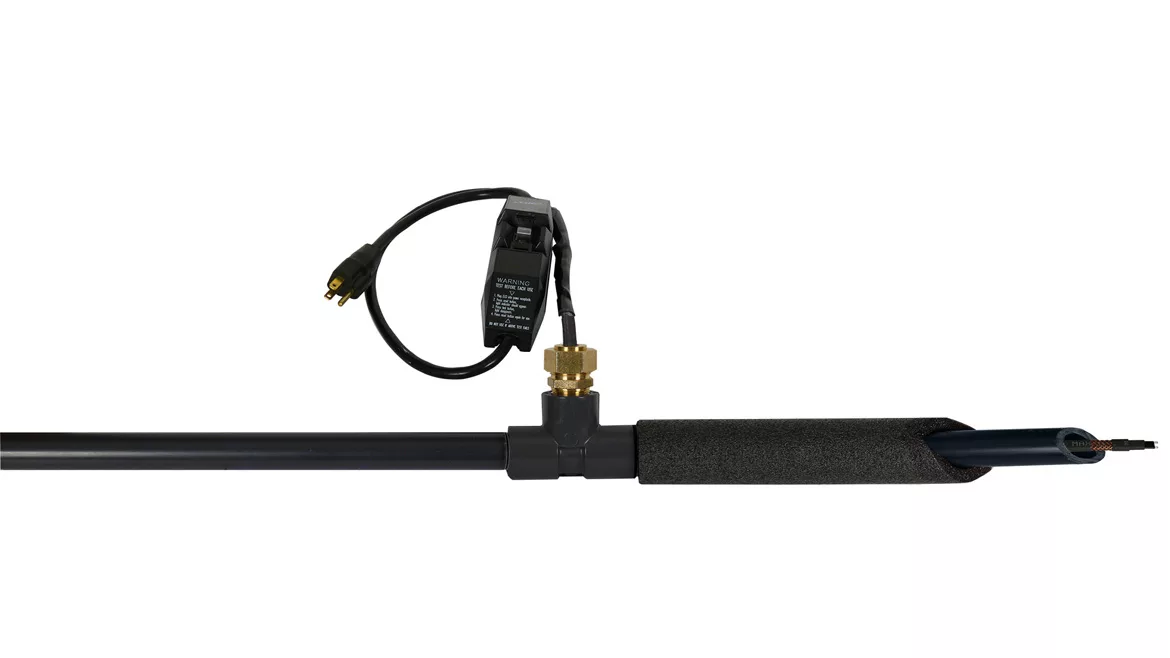

EasyHeat self-regulating heater system
The EasyHeat In-Line Self-Regulating Heater System offers an economical way to protect supply and drain pipes so running water can be maintained all winter long. With user-friendly plug-in installation and energy-saving thermostat control, the system is ideal for preventing ice from forming inside 3/4-inch to 6-inch diameter water lines in temperatures below -40°F (-40° C). It also features a Ground-Fault Circuit Interrupter with test and reset buttons to ensure electrical safety, and it automatically adjusts heat according to surrounding temperatures and minimizes hot spots, allowing the cable to be overlapped. Included in the system is a GFCI, 6' power cord, shrink tubes and crimp connectors, 6' pull cord, and 3/4-inch NPT thread fitting. The system is designed for use with EasyHeat SR and TSR heating cables and the EasyHeat SL-3 thermostat controller. Maximum cable length is 220' using SR cable, and 275' with TSR cable. EasyHeat's energy-saving SL-3 thermostat features a 10' sensor that detects pipe temperature and energizes the cable as required.
