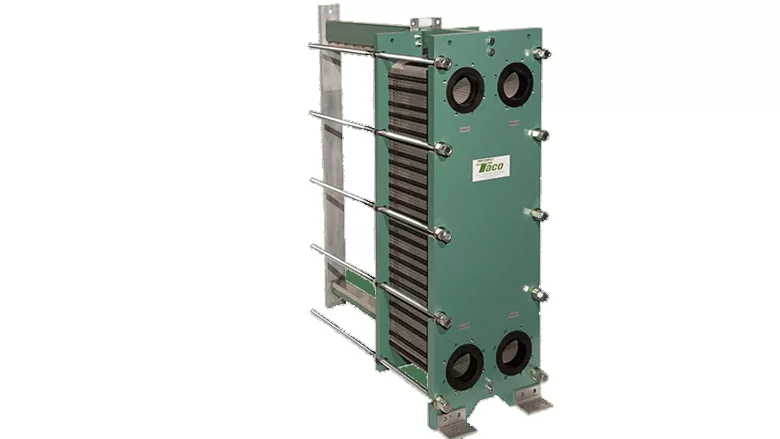

Taco developed PF Series plate and frame heat exchangers, engineered for efficiency, durability and adaptability in a range of heat transfer applications. The products are designed, constructed and tested to meet ASME Section VIII, Division 1 requirements. The PF Series features 0.5mm thick plates for standard designs and 0.6mm plates for high-pressure applications, providing exceptional strength while maintaining optimal heat transfer efficiency. Taco offers a variety of materials to ensure corrosion resistance, including 304 and 316 stainless steel, and titanium heat transfer plates for even greater protection.

With standard working pressures of 150 psi and 300 psi, and higher-pressure ratings available, the PF Series heat exchangers are designed to handle a wide array of system requirements. For high-temperature applications, Taco provides NBR-HT gaskets rated to 284°F and EPDM-HT gaskets rated to 320°F, ensuring reliability in extreme conditions.

For more information, visit https://www.tacocomfort.com/.
